Understanding the details of the boot process will help you diagnose problems that can arise during a boot. Then we’ll explain the kinds of things that can go wrong during the boot process and how to resolve them.
Windows 10 0x000000c5
Jun 19, 2013 This is caused by drivers that have corrupted the system pool. Run the driver verifier against any new (or suspect) drivers, and if that doesn't turn up the culprit, then use gflags to enable special pool.
Finally, we’ll explain what occurs on an orderly system shutdown. Boot ProcessIn describing the Windows boot process, we’ll start with the installation of Windows and proceed through the execution of boot support files. Device drivers are a crucial part of the boot process, so we’ll explain the way that they control the point in the boot process at which they load and initialize.
Then we’ll describe how the executive subsystems initialize and how the kernel launches the user-mode portion of Windows by starting the Session Manager process (Smss.exe), which starts the initial two sessions (session 0 and session 1). Along the way, we’ll highlight the points at which various on-screen messages appear to help you correlate the internal process with what you see when you watch Windows boot.The early phases of the boot process differ significantly on systems with a BIOS (basic input output system) versus systems with an EFI (Extensible Firmware Interface). EFI is a newer standard that does away with much of the legacy 16-bit code that BIOS systems use and allows the loading of preboot programs and drivers to support the operating system loading phase. The next sections describe the portions of the boot process specific to BIOS-based systems and are followed with a section describing the EFI-specific portions of the boot process.To support these different firmware implementations (as well as EFI 2.0, which is known as Unified EFI, or UEFI), Windows provides a boot architecture that abstracts many of the differences away from users and developers in order to provide a consistent environment and experience regardless of the type of firmware used on the installed system. BIOS PrebootThe Windows boot process doesn’t begin when you power on your computer or press the reset button. It begins when you install Windows on your computer. At some point during the execution of the Windows Setup program, the system’s primary hard disk is prepared with code that takes part in the boot process.
Before we get into what this code does, let’s look at how and where Windows places the code on a disk. Since the early days of MS-DOS, a standard has existed on x86 systems for the way physical hard disks are divided into volumes.Microsoft operating systems split hard disks into discrete areas known as partitions and use file systems (such as FAT and NTFS) to format each partition into a volume. A hard disk can contain up to four primary partitions.
Because this apportioning scheme would limit a disk to four volumes, a special partition type, called an extended partition, further allocates up to four additional partitions within each extended partition. Extended partitions can contain extended partitions, which can contain extended partitions, and so on, making the number of volumes an operating system can place on a disk effectively infinite. Shows an example of a hard disk layout, and Table 13-1 summarizes the files involved in the BIOS boot process. Sample hard disk layoutPhysical disks are addressed in units known as sectors.
A hard disk sector on a BIOS PC is typically 512 bytes (but moving to 4,096 bytes; see Chapter 9 for more information). Utilities that prepare hard disks for the definition of volumes, such as the Windows Setup program, write a sector of data called a Master Boot Record (MBR) to the first sector on a hard disk.
(MBR partitioning is described in Chapter 9.) The MBR includes a fixed amount of space that contains executable instructions (called boot code) and a table (called a partition table) with four entries that define the locations of the primary partitions on the disk. When a BIOS-based computer boots, the first code it executes is called the BIOS, which is encoded into the computer’s flash memory. The BIOS selects a boot device, reads that device’s MBR into memory, and transfers control to the code in the MBR.The MBRs written by Microsoft partitioning tools, such as the one integrated into Windows Setup and the Disk Management MMC snap-in, go through a similar process of reading and transferring control. First, an MBR’s code scans the primary partition table until it locates a partition containing a flag (Active) that signals the partition is bootable. When the MBR finds at least one such flag, it reads the first sector from the flagged partition into memory and transfers control to code within the partition.
This type of partition is called a system partition, and the first sector of such a partition is called a boot sectoror volume boot record(VBR). The volume defined for this partition is called the system volume.Operating systems generally write boot sectors to disk without a user’s involvement. For example, when Windows Setup writes the MBR to a hard disk, it also writes the file system boot code (part of the boot sector) to a 100-MB bootable partition of the disk, marked as hidden to prevent accidental modification after the operating system has loaded.
This is the system volume described earlier.Before writing to a partition’s boot sector, Windows Setup ensures that the boot partition (the boot partition is the partition on which Windows is installed, which is typically not the same as the system partition, where the boot files are located) is formatted with NTFS, the only supported file system that Windows can boot from when installed on a fixed disk, or formats the boot partition (and any other partition) with NTFS. Note that the format of the system partition can be any format that Windows supports (such as FAT32). If partitions are already formatted appropriately, you can instruct Setup to skip this step.
After Setup formats the system partition, Setup copies the Boot Manager program (Bootmgr) that Windows uses to the system partition (the system volume).Another of Setup’s roles is to prepare the Boot Configuration Database (BCD), which on BIOS systems is stored in the BootBCD file on the root directory of the system volume. This file contains options for starting the version of Windows that Setup installs and any preexisting Windows installations. If the BCD already exists, the Setup program simply adds new entries relevant to the new installation. For more information on the BCD, see Chapter 3, “System Mechanisms,” in Part 1.
The BIOS Boot Sector and BootmgrSetup must know the partition format before it writes a boot sector because the contents of the boot sector vary depending on the format. For a partition that is in NTFS format, Windows writes NTFS-capable code. The role of the boot-sector code is to give Windows information about the structure and format of a volume and to read in the Bootmgr file from the root directory of the volume. Thus, the boot-sector code contains just enough read-only file system code to accomplish this task. After the boot-sector code loads Bootmgr into memory, it transfers control to Bootmgr’s entry point. If the boot-sector code can’t find Bootmgr in the volume’s root directory, it displays the error message “BOOTMGR is missing”.Bootmgr is actually a concatenation of a.com file (Startup.com) and an.exe file (Bootmgr.exe), so it begins its existence while a system is executing in an x86 operating mode called real mode, associated with.com files.
In real mode, no virtual-to-physical translation of memory addresses occurs, which means that programs that use the memory addresses interpret them as physical addresses and that only the first 1 MB of the computer’s physical memory is accessible. Simple MS-DOS programs execute in a real-mode environment. However, the first action Bootmgr takes is to switch the system to protected mode. Still no virtual-to-physical translation occurs at this point in the boot process, but a full 32 bits of memory becomes accessible. After the system is in protected mode, Bootmgr can access all of physical memory. After creating enough page tables to make memory below 16 MB accessible with paging turned on, Bootmgr enables paging.
Protected mode with paging enabled is the mode in which Windows executes in normal operation.After Bootmgr enables protected mode, it is fully operational. However, it still relies on functions supplied by BIOS to access IDE-based system and boot disks as well as the display. Bootmgr’s BIOS-interfacing functions briefly switch the processor back to real mode so that services provided by the BIOS can be executed.
Bootmgr next reads the BCD file from the Boot directory using built-in file system code. Like the boot sector’s code, Bootmgr contains a lightweight NTFS file system library (Bootmgr also supports other file systems, such as FAT, El Torito CDFS, and UDFS, as well as WIM and VHD files); unlike the boot sector’s code, Bootmgr’s file system code can also read subdirectories. BitLocker driver service settings.Adds the file system driver that’s responsible for implementing the code for the type of partition (NTFS) on which the installation directory resides to the list of boot drivers to load. Winload must load this driver at this time; if it didn’t, the kernel would require the drivers to load themselves, a requirement that would introduce a circular dependency.Loads the boot drivers, which should only be drivers that, like the file system driver for the boot volume, would introduce a circular dependency if the kernel was required to load them. To indicate the progress of the loading, Winload updates a progress bar displayed below the text “Starting Windows”. If the sos option is specified in the BCD, Winload doesn’t display the progress bar but instead displays the file names of each boot driver. Keep in mind that the drivers are loaded but not initialized at this time—they initialize later in the boot sequence.Prepares CPU registers for the execution of Ntoskrnl.exe.For steps 1 and 8, Winload also implements part of the Kernel Mode Code Signing (KMCS) infrastructure, which was described in Chapter 3 in Part 1, by enforcing that all boot drivers are signed on 64-bit Windows.
Additionally, the system will crash if the signature of the early boot files is incorrect.This action is the end of Winload’s role in the boot process. At this point, Winload calls the main function in Ntoskrnl.exe ( KiSystemStartup) to perform the rest of the system initialization.
The UEFI Boot ProcessA UEFI-compliant system has firmware that runs boot loader code that’s been programmed into the system’s nonvolatile RAM (NVRAM) by Windows Setup. The boot code reads the BCD’s contents, which are also stored in NVRAM. The Bcdedit.exe tool mentioned earlier also has the ability to abstract the firmware’s NVRAM variables in the BCD, allowing for full transparency of this mechanism.The UEFI standard defines the ability to prompt the user with an EFI Boot Manager that can be used to select an operating system or additional applications to load. However, to provide a consistent user interface between BIOS systems and UEFI systems, Windows sets a 2-second timeout for selecting the EFI Boot Manager, after which the EFI-version of Bootmgr (Bootmgfw.efi) loads instead.Hardware detection occurs next, where the boot loader uses UEFI interfaces to determine the number and type of the following devices:.Network adapters.Video adapters.Keyboards.Disk controllers.Storage devicesOn UEFI systems, all operations and programs execute in the native CPU mode with paging enabled and no part of the Windows boot process executes in 16-bit mode. Note that although EFI is supported on both 32-bit and 64-bit systems, Windows provides support for EFI only on 64-bit platforms.Just as Bootmgr does on x86 and x64 systems, the EFI Boot Manager presents a menu of boot selections with an optional timeout. NOTEAlthough the EFI standard has been available since early 2001, and UEFI since 2005, very few computer manufacturers have started using this technology because of backward compatibility concerns and the difficulty of moving from an entrenched 20-year-old technology to a new one.
Two notable exceptions are Itanium machines and Apple’s Intel Macintosh computers. Booting from iSCSIInternet SCSI (iSCSI) devices are a kind of network-attached storage, in that remote physical disks are connected to an iSCSI Host Bus Adapter (HBA) or through Ethernet. These devices, however, are different from traditional network-attached storage (NAS) because they provide block-level access to disks, unlike the logical-based access over a network file system that NAS employs. Therefore, an iSCSI-connected disk appears as any other disk drive, both to the boot loader as well as to the OS, as long as the Microsoft iSCSI Initiator is used to provide access over an Ethernet connection.
By using iSCSI-enabled disks instead of local storage, companies can save on space, power consumption, and cooling.Although Windows has traditionally supported booting only from locally connected disks, or network booting through PXE, modern versions of Windows are also capable of natively booting from iSCSI devices through a mechanism called iSCSI Boot. The boot loader (Winload.exe) contains a minimalistic network stack conforming to the Universal Network Device Interface (UNDI) standard, which allows compatible NIC ROMs to respond to Interrupt 13h (the legacy BIOS disk I/O interrupt) and convert the requests to network I/O. On EFI systems, the network interface driver provided by the manufacturer is used instead, and EFI Device APIs are used instead of interrupts.Finally, to know the location, path, and authentication information for the remote disk, the boot loader also reads an iSCSI Boot Firmware Table (iBFT) that must be present in physical memory (typically exposed through ACPI). Additionally, Windows Setup also has the capability of reading this table to determine bootable iSCSI devices and allow direct installation on such a device, such that no imaging is required.

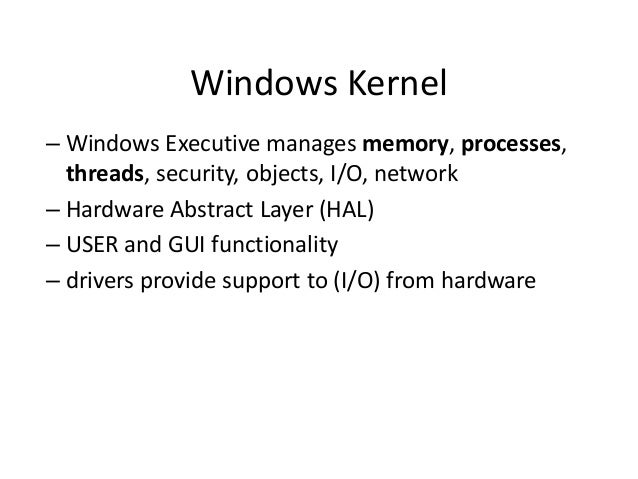

Combined with the Microsoft iSCSI Initiator, this is all that’s required for Windows to boot from iSCSI, as shown in. ISCSI boot architecture Initializing the Kernel and Executive SubsystemsWhen Winload calls Ntoskrnl, it passes a data structure called the loader parameter block that contains the system and boot partition paths, a pointer to the memory tables Winload generated to describe the physical memory on the system, a physical hardware tree that is later used to build the volatile HARDWARE registry hive, an in-memory copy of the SYSTEM registry hive, and a pointer to the list of boot drivers Winload loaded, as well as various other information related to the boot processing performed until this point. EXPERIMENT: Loader Parameter BlockWhile booting, the kernel keeps a pointer to the loader parameter block in the KeLoaderBlock variable. The kernel discards the parameter block after the first boot phase, so the only way to see the contents of the structure is to attach a kernel debugger before booting and break at the initial kernel debugger breakpoint. Pending File Rename OperationsThe fact that executable images and DLLs are memory-mapped when they are used makes it impossible to update core system files after Windows has finished booting (unless hotpatching technology is used, which is only for Microsoft patches to the operating system). The MoveFileEx Windows API has an option to specify that a file move be delayed until the next boot. Service packs and hotfixes that must update in-use memory-mapped files install replacement files onto a system in temporary locations and use the MoveFileEx API to have them replace otherwise in-use files.
When used with that option, MoveFileEx simply records commands in the PendingFileRenameOperations and PendingFileRenameOperations2 keys under HKLMSYSTEMCurrentControlSetControlSession Manager. These registry values are of type MULTISZ, where each operation is specified in pairs of file names: the first file name is the source location, and the second is the target location. Delete operations use an empty string as their target path. You can use the Pendmoves utility from Windows Sysinternals to view registered delayed rename and delete commands.After performing these initialization steps, the main thread in Smss waits forever on the process handle of Winlogon, while the other ALPC threads wait for messages to create new sessions or subsystems. If either Wininit or Csrss terminate unexpectedly, the kernel crashes the system because these processes are marked as critical. If Winlogon terminates unexpectedly, the session associated with it is logged off.Wininit then performs its startup steps, such as creating the initial window station and desktop objects. It also configures the Session 0 window hook, which is used by the Interactive Services Detection service (UI0Detect.exe) to provide backward compatibility with interactive services.
(See Chapter 4 in Part 1 for more information on services.) Wininit then creates the service control manager (SCM) process (%SystemRoot%System32Services.exe), which loads all services and device drivers marked for auto-start, and the Local Security Authority subsystem (LSASS) process (%SystemRoot%System32Lsass.exe). Finally, it loads the local session manager (%SystemRoot%System32Lsm.exe). On session 1 and beyond, Winlogon runs instead and loads the registered credential providers for the system (by default, the Microsoft credential provider supports password-based and smartcard-based logons) into a child process called LogonUI (%SystemRoot%System32Logonui.exe), which is responsible for displaying the logon interface. (For more details on the startup sequence for Wininit, Winlogon, and LSASS, see the section “Winlogon Initialization” in Chapter 6 in Part 1.)After the SCM initializes the auto-start services and drivers and a user has successfully logged on at the console, the SCM deems the boot successful.
The registry’s last known good control set (as indicated by HKLMSYSTEMSelectLastKnownGood) is updated to match CurrentControlSet. NOTEBecause noninteractive servers might never have an interactive logon, they might not get LastKnownGood updated to reflect the control set used for a successful boot. You can override the definition of a successful boot by setting HKLMSOFTWAREMicrosoftWindows NTCurrentVersionWinlogonReportBootOk to 0, writing a custom boot verification program that calls the NotifyBootConfigStatus Windows API when a boot is successful, and entering the path to the verification program in HKLMSYSTEMCurrentControlSetControlBootVerificationProgram.After launching the SCM, Winlogon waits for an interactive logon notification from the credential provider. When it receives a logon and validates the logon (a process for which you can find more information in the section “User Logon Steps” in Chapter 6 in Part 1), Winlogon loads the registry hive from the profile of the user logging on and maps it to HKCU. It then sets the user’s environment variables that are stored in HKCUEnvironment and notifies the Winlogon notification packages registered in HKLMSOFTWAREMicrosoftWindows NTCurrentVersionWinlogonNotify that a logon has occurred.Winlogon next starts the shell by launching the executable or executables specified in HKLMSOFTWAREMicrosoftWindows NTCurrentVersionWinLogonUserinit (with multiple executables separated by commas) that by default points at WindowsSystem32Userinit.exe.
Userinit.exe performs the following steps:.Processes the user scripts specified in HKCUSoftwarePoliciesMicrosoftWindowsSystemScripts and the machine logon scripts in HKLMSOFTWAREPoliciesMicrosoftWindowsSystemScripts. (Because machine scripts run after user scripts, they can override user settings.).If Group Policy specifies a user profile quota, starts%SystemRoot%System32Proquota.exe to enforce the quota for the current user.Launches the comma-separated shell or shells specified in HKCUSoftwareMicrosoftWindows NTCurrentVersionWinlogonShell.
If that value doesn’t exist, Userinit.exe launches the shell or shells specified in HKLMSOFTWAREMicrosoftWindows NTCurrentVersionWinlogonShell, which is by default Explorer.exe.Winlogon then notifies registered network providers that a user has logged on. Cii sohrabji godrej green business centre pdf files. The Microsoft network provider, Multiple Provider Router (%SystemRoot%System32Mpr.dll), restores the user’s persistent drive letter and printer mappings stored in HKCUNetwork and HKCUPrinters, respectively. Shows the process tree as seen in Process Monitor after a logon (using its boot logging capability). Note the Smss processes that are dimmed (meaning that they have since exited).
These refer to the spawned copies that initialized each session. Process tree during logon ReadyBootWindows uses the standard logical boot-time prefetcher (described in Chapter 10) if the system has less than 700 MB of memory, but if the system has 700 MB or more of RAM, it uses an in-RAM cache to optimize the boot process. The size of the cache depends on the total RAM available, but it is large enough to create a reasonable cache and yet allow the system the memory it needs to boot smoothly.After every boot, the ReadyBoost service (see Chapter 10 for information on ReadyBoost) uses idle CPU time to calculate a boot-time caching plan for the next boot. It analyzes file trace information from the five previous boots and identifies which files were accessed and where they are located on disk. It stores the processed traces in%SystemRoot%PrefetchReadyboot as.fx files and saves the caching plan under HKLMSYSTEMCurrentControlSetServicesRdyboostParameters in REGBINARY values named for internal disk volumes they refer to.The cache is implemented by the same device driver that implements ReadyBoost caching (Ecache.sys), but the cache’s population is guided by the boot plan previously stored in the registry.
Although the boot cache is compressed like the ReadyBoost cache, another difference between ReadyBoost and ReadyBoot cache management is that while in ReadyBoot mode, the cache is not encrypted. The ReadyBoost service deletes the cache 50 seconds after the service starts, or if other memory demands warrant it, and records the cache’s statistics in HKLMSYSTEMCurrentControlSetServicesEcacheParametersReadyBootStats, as shown in. ReadyBoot statistics Images That Start AutomaticallyIn addition to the Userinit and Shell registry values in Winlogon’s key, there are many other registry locations and directories that default system components check and process for automatic process startup during the boot and logon processes. The Msconfig utility (%SystemRoot%System32Msconfig.exe) displays the images configured by several of the locations. The Autoruns tool, which you can download from Sysinternals and that is shown in, examines more locations than Msconfig and displays more information about the images configured to automatically run. By default, Autoruns shows only the locations that are configured to automatically execute at least one image, but selecting the Include Empty Locations entry on the Options menu causes Autoruns to show all the locations it inspects. The Options menu also has selections to direct Autoruns to hide Microsoft entries, but you should always combine this option with Verify Image Signatures; otherwise, you risk hiding malicious programs that include false information about their company name information.
EXPERIMENT: AutorunsMany users are unaware of how many programs execute as part of their logon. Original equipment manufacturers (OEMs) often configure their systems with add-on utilities that execute in the background using registry values or file system directories processed for automatic execution and so are not normally visible.
See what programs are configured to start automatically on your computer by running the Autoruns utility from Sysinternals. Compare the list shown in Autoruns with that shown in Msconfig and identify any differences.
Then ensure that you understand the purpose of each program.
